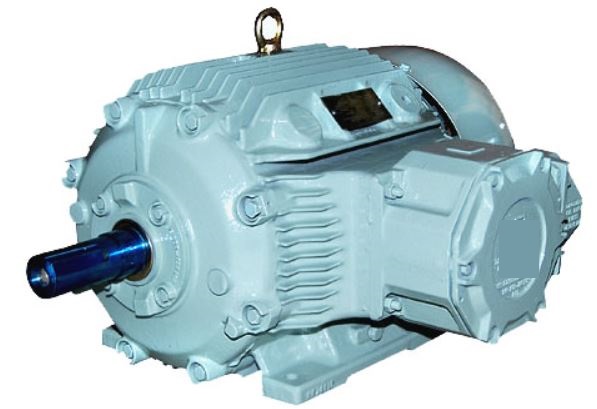

AC LT Gear Motor-4KW
AC LT Gear Motor are single-phase motors used with a single-phase AC power source and three-phase motors used with a three-phase AC power supply. Simply attaching a single-phase power supply to the included capacitor will enable you to run a single-phase motor.
AC LT Gear Motor are single-phase motors used with a single-phase AC power source and three-phase motors used with a three-phase AC power supply. Simply attaching a single-phase power supply to the included capacitor will enable you to run a single-phase motor.
*Motor Power:4.0 kW
* Drive Shaft Speed:57 R/Min.
*Torque:672 Nm
* Service Factor fB:3.4
* Corrosion Protection:CORO2
* Painting:RAL 7001
* Mounting:B3
*Direction of Terminal Box:I/A
* Net Weight per Piece:312
* Frequency Range:5-50-55 Hz
* Voltage:59-415-415 V
*Power:0.4-4.0-4.3 kW
*Synchronous Speed:5.7-57-63 R/Min
*Current (Approx):10-0-10.0-10.7 A
*Gear Designs:
*Type:Helical Gears BG70, Arrangements Key:Foot Design, Gearbox Reduction:17.68,
Special Designs Arrangement of the Motor:
*Type:3 Phase Motor in Roller Table Design in Non-Ventilated Version
* Power Factor (cos phi):0.63
*Insulation Class:H, Operating Mode:S5
* Permissible Blocking (Stoppage) Time Under Full Voltage:2 Min.
* Assigned Speed:970, Protection:IP 65
* Terminal Box:TB 322, IEC Frame Size:180, Motor Nominal Torque:39 Nm
* Motor Starting Torque:140 Nm, Motor Maximum Torque:184 Nm
*Motor Inertia:0.245 Kgm2
* Starting Current:77.0 Amps
*Acceleration Current (Approx):28 Amps
*No Load Current:7.7 Amps
* Maximum Torque Capacity of Gear Box:2300 Nm
The gear reducer is typically designed to increase the output torque while retaining a compact size, without increasing the motor's power consumption.
