Product specification

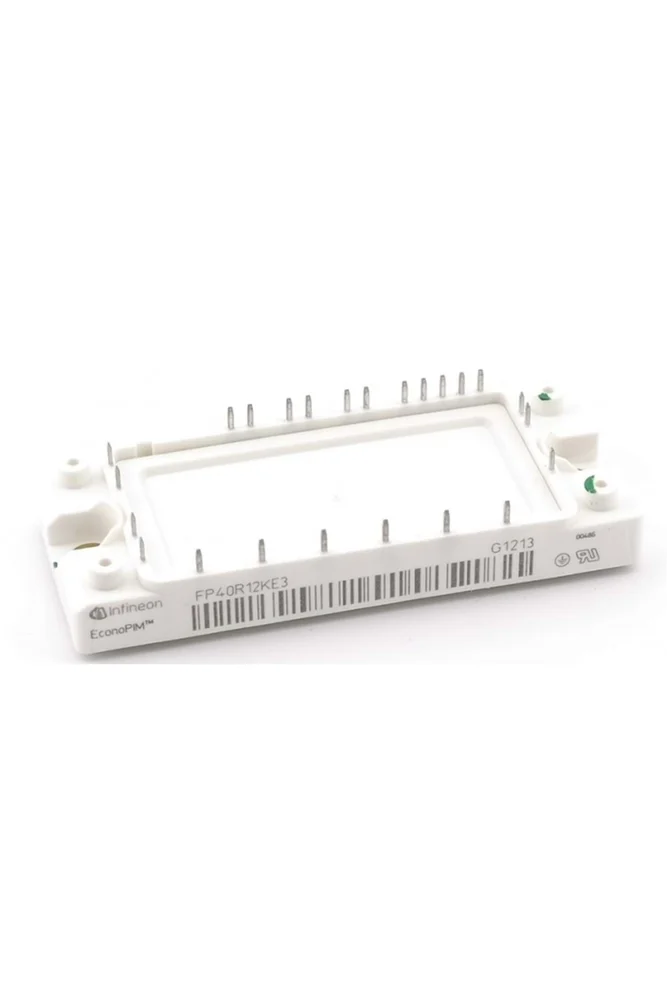

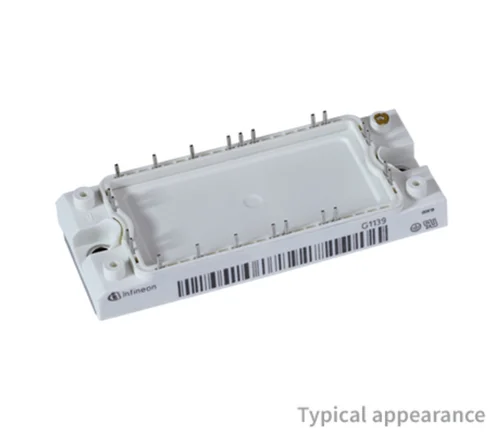

Automotion Components IGBT Modules have the following specifications:

• Voltage rating: The IGBT modules have a voltage rating ranging from 600V to 1700V, depending on the model.
• Current rating: The IGBT modules have a current rating ranging from 10A to 1200A, depending on the model.
• Switching frequency: The IGBT modules have a switching frequency ranging from 10kHz to 100kHz, depending on the model.
• Protection features: The IGBT modules are equipped with various protection features, such as short-circuit protection, overcurrent protection, overvoltage protection, and thermal protection.
• Cooling: The IGBT modules can be cooled using various methods, such as air cooling, liquid cooling, or heat sinks, depending on the model.
• Form factor: The IGBT modules are available in various form factors, such as single, dual, or six-pack modules, and in various package types, such as flat-base, press-fit, or soldered.
• Standards: The IGBT modules comply with various international standards, such as IEC, UL, and RoHS.

Application

Automotion Components IGBT Modules are suitable for a wide range of industrial applications, including:

• Motor drives and controls: The IGBT modules can be used in various motor control applications, such as servo drives, variable frequency drives, and other high-power motor controls.
• Renewable energy: The IGBT modules are used in various renewable energy applications, such as solar inverters, wind turbine controls, and other power electronics.
• Power transmission: The IGBT modules can be used in various power transmission applications, such as DC/AC converters, DC/DC converters, and other power electronics.
• Industrial automation: The IGBT modules are used in various industrial automation applications, such as PLCs, HMIs, and other control systems.
